How do I cut several copies?

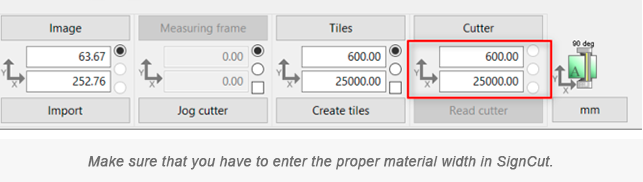

With SignCut, you don't have to manually create copies of your design in your design software. You can use our Copies feature and SignCut will cut out as many copies (maximum copies varies per material width) as you specify on the program. To get optimum results, please make sure that you have to enter the proper material width in SignCut when using this feature. Here's a picture to show you where to edit your material width within the program.

Pro tip: Don't forget to hit "Enter" on your keyboard to apply the changes!

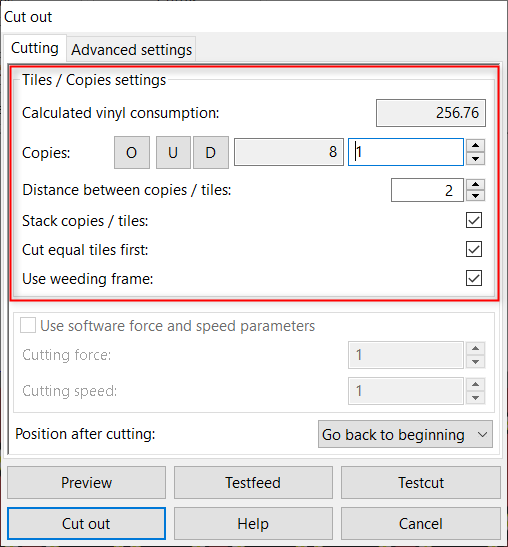

To access the Copies feature, click Cut out in the file menu.



Copies Use the active edit box to enter the number of copies you prefer. The grayed-out edit box shows the number of copies that fit one stack on the available vinyl width.



The O-button stands for "Optimize". If this is enabled (it is normally activated by default), the number of stacked copies can be increased by decreasing the weeding frame distance, and the distance between copies/tiles.

Pro Tip: Click this button to optimize the vinyl usage!



The U-button stands for "Up". If it is clicked, it will round off the number of copies up to the nearest stack size. In the example above, one (1) copy is entered, and with the U-button clicked, it will be changed to 7 copies. This is very useful if a customer, for example, orders 35 copies, the value "35" is entered in the copies box. And with a click on the U-button, it will round up the number of copies that the maximum vinyl width can accommodate.



The D-button stands for "Down". if it is activated, it will subtract the number of copies to be cut-out (marked in blue) by the number of stacked copies/tiles that fit the width of the vinyl (marked in red).
