The Spooler targets to aid in the design-to-production process of clients subscribed to SignCut Pro 2's Premium Edition.

Companies that have separate locations and personnel for design and production can assign a maximum of 4 computers per subscription that shall act as "file senders" where all design files will originate. While connected under the same network, one designated computer at their production area can be installed with the SignCut Spooler to act as a "file receiver" of these designs. This same Spooler computer will be connected to the plotters that will execute the cutting jobs.

To set up a dedicated Spooler computer, you will need to download the SignCut Pro 2 installer from this link and follow the instructions below. Once done, the Spooler shall be ready to receive your cut files from the designer's SignCut Pro 2.

1. Run the scpro2.exe installer and agree to the terms and conditions.

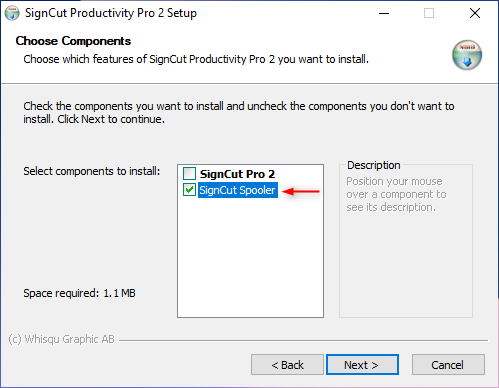

2. Mark a check on "SignCut Spooler" in the next dialogue box that will appear.

3. Complete installation then launch the SignCut Spooler.

4. Setup your cutter by clicking on the Add a New Machine button (spooler icon).

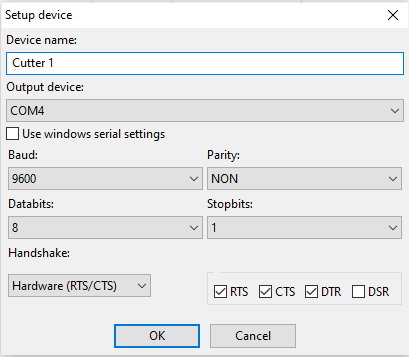

5. Select your cutter's correct output device and match the baud rate on the machine.

6. Name your device and click OK.

7. Repeat steps 4 to 6 to add several plotters to the list.

Send files from your SignCut Pro 2 to the Spooler computer by following these steps:

1. Open SignCut Pro 2 and import your design.

2. Select your cutter brand and model on the Cutter Settings.

3. Select SignCut Spooler on the Output Device/Port dropdown list.

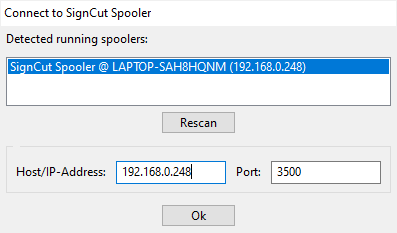

4. Enter your SignCut Spooler's TCP/IP Address and Port to establish communication.

5. Open the Cut-Out Settings (blade icon).

6. Choose your plotter from the Select Spooler Target dropdown list.

7. Select either Send Now or On Hold on the Spooler Job Status option.

8. Click on the Cut-Out button to send the file to the Spooler.

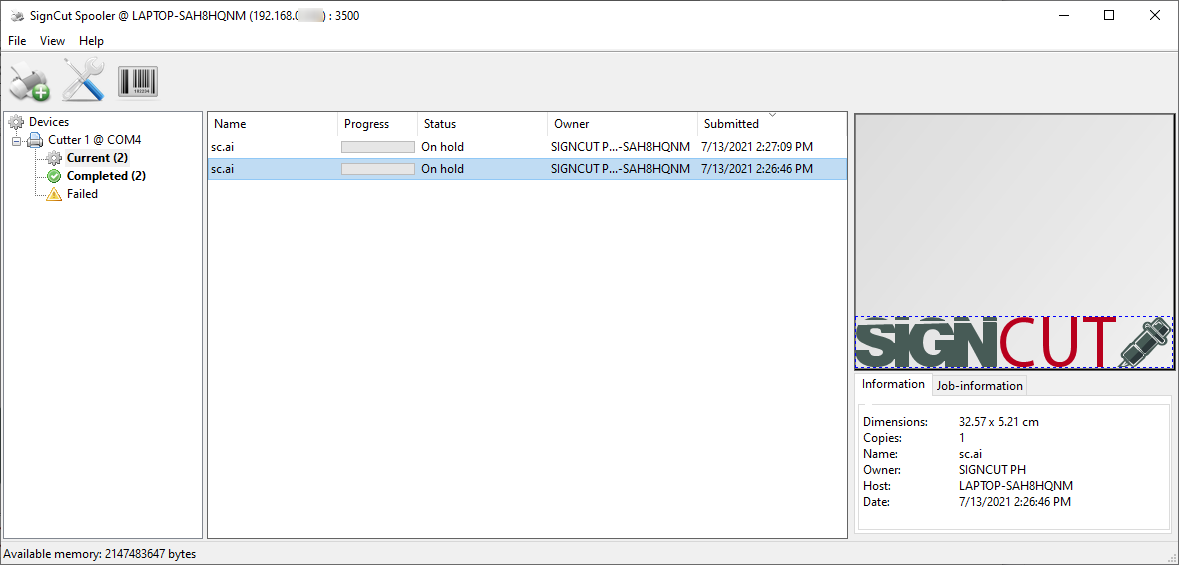

9. Your file will proceed to cut and reflect onto the Completed section of your device once done. If chosen to be sent On Hold, check the Current section of your device then right-click on the file to Send Job to the cutter.
